We're the professional supplier for all of led series like LED tube, LED downlight, LED panel, LED Floodlight，LED high bay lights etc.Superior quality and excellent serives is always our highest sales
12 Years
| Ask Lasest Price | |
| Brand Name : | gidealed |
| Certification : | CE ,ROSH, TUV,UL,FCC |
| Model Number : | GD-PLC100W-20 |
| Price : | Negotiatable |
| Delivery Time : | within 7days upon all is confirmed in the contract |
| Payment Terms : | T/T, L/C, West Union |
| Supply Ability : | 5000pcs per week |
Waterproof 100W LED Flood light
| model: | GD-PLC100W-20 | |
| Input Power: | 100 w | |
| Input Volt: | AC90-265V | |
| PF | >0.95 | |
| Luminous Flux: | 85000-9000 lm | |
| IP Grade | IP65 | |
LED type: | 1pc 100W COB | |
| Housing | aluminum | |
Beam angle: | 120 degree | |
LED working life: | 35000H | |
| LED Color:Warm white, Pure white, Cool white | ||
About LED Color:

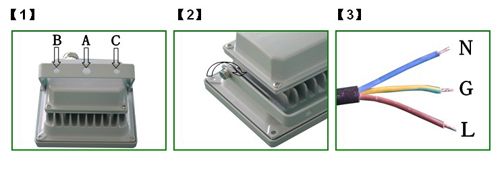

Installation Instruction:
As Picture No.1 showed, fix the lamp to mounting surface with 3
screws.
As Picture No.2 showed, unscrew the retaining screw, take down the
fitting.
As Picture No.3 showed, Connect Live Wire/Null Wire/Ground Wire to
electric cable properly and switch on.
Package:
Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotels,
meeting rooms, offices , hospitals, schools , factories ,
commercial lighting , shopping malls, supermarkets, kitchen,
display, backlight and so on.
|
