30W LED Flood light
 | model: | GD-PLC30W-20 |
| Input Power: | 30 w | |
| Input Volt: | AC90-265V | |
| PF | >0.95 | |
| Luminous Flux: | 2700-2800 lm | |
| IP Grade | IP65 | |

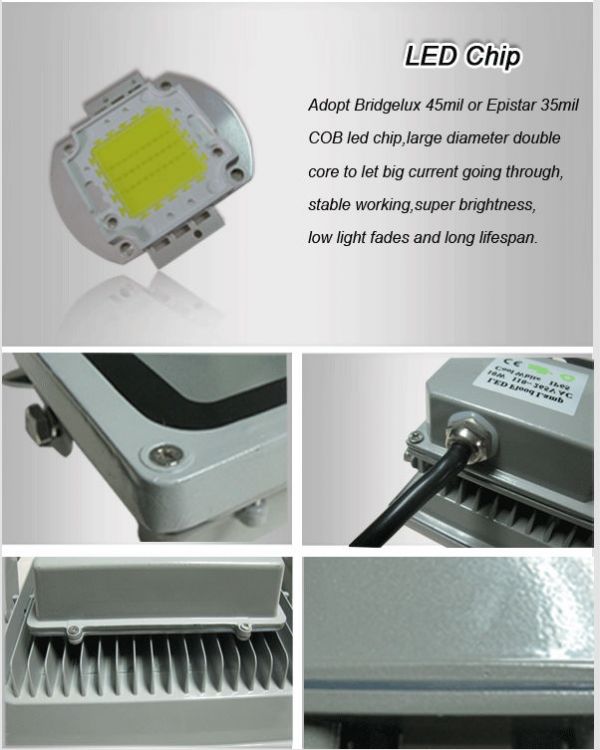

LED type: | 1pc 30W Epistar COB | |
| Housing | aluminum | |
Beam angle: | 60 or 120 degree | |
LED working life: | 35000H | |
| LED Color:Warm white, Pure white, Cool white | ||
Light distribution curve:
About LED Color:
Installation Instruction:
As Picture No.1 showed, fix the lamp to mounting surface with 3
screws.
As Picture No.2 showed, unscrew the retaining screw, take down the
fitting.
As Picture No.3 showed, Connect Live Wire/Null Wire/Ground Wire to
electric cable properly and switch on.
Applications:
Widely used in billboards, highways, railway tunnels, bridges,
squares, stadiums, trees, parking lots, building walls, hotels,
meeting rooms, offices , hospitals, schools , factories ,
commercial lighting , shopping malls, supermarkets, kitchen,
display, backlight and so on.
|
|
