| Ask Lasest Price | |
| Brand Name : | gidealed |
| Certification : | CE ,ROSH, TUV,UL,FCC |
| Model Number : | GD-PL12030-40W |
| Price : | Within 5-200/pcs |
| Delivery Time : | within 14 Days |
| Payment Terms : | T/T, L/C, West Union |
| Supply Ability : | 5000pcs per week |

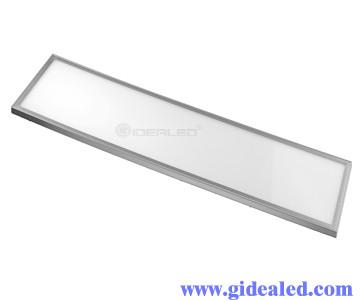

40W LED Panel Lights 1200*300mm
Features:
♥ Imported LGP , the light guide light rate is 80% above
♥ Pure aluminum frame, bright silver processing, good heat
dissipation, high-grade appearance
♥ The light even effect and no dark area, efficacy > 75 LM/W
♥ Up to 70% energy savings
♥ Isolation constant current power supply, input voltage:
AC85-265V,
♥ High efficiency constant current driver can reach more than
90%,PF>0.92
♥ Unique design, Embedded installation without the accessories.
♥ Special circuit design, each group of LEDs work separately,
avoiding any problem of lighting
output caused or influenced by single faulty LED.
Specifications:
 | model: | GD-PL12030-40W |
| Input Power: | 40 w | |
| Input Volt: | AC90-265V | |
| PF | >0.95 | |
| Luminous Flux: | 3000-3200 lm | |
| Dimension: | 1200mm*295mm*12mm | |
LED type: | Epistar SMD2835 LED | |
| Housing | aluminum | |
Housing Color: | Silver | |
Net Weight: | 6 kg | |
| LED Color:Warm white, Pure white, Cool white | ||
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Power connection:
Installation Instruction:
Package:
|
|
|
Applications:
Widely used in the hotel, meeting room, offices, hospitals, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight, home indoor lighting and so on.
|
|
