We're the professional supplier for all of led series like LED tube, LED downlight, LED panel, LED Floodlight，LED high bay lights etc.Superior quality and excellent serives is always our highest sales
12 Years
| Ask Lasest Price | |
| Brand Name : | gidealed |
| Certification : | CE ,ROSH, TUV,UL,FCC |
| Model Number : | GD-FLC100W-30 |
| Price : | US$10-200/PC for FOB Guangzhou |
| Delivery Time : | Within 15days upon all is confirmed |
| Payment Terms : | T/T, L/C, West Union |
| Supply Ability : | 5000pcs per week |
100W LED Flood light,LED Tunnel Lamp IP65,CREE XP-G LEDs
 | model: | GD-FLC100W-30 |
| Input Power: | 120 w | |
| Input Volt: | AC90-265V | |
| PF | >0.95 | |
| Luminous Flux: | 9000-10000 lm | |
| IP Grade | IP65 | |
LED type: | CREE XP-G LEDs | |
| Housing | aluminum | |
Beam angle: | 120 degree | |
Net Weight: | 4.8 kg | |
| LED Color:Warm white, Pure white, Cool white | ||
Curve of light distribution(Ta=25℃±3℃ Unit: cd)
About LED Color:
Installation Instruction:
1. Cut two hole that the distance and the size like "A" in the framework. Lock the floodlight with bolt and nut;
2. Rotating the light body to adjust the required cast light angle, install the hex-head screws tight;
3. Put the brown lines and blue lines connect to the "L" and "N", Yellow-green wire connected to ground line;
4. Connect the power before confirm connection is correct.

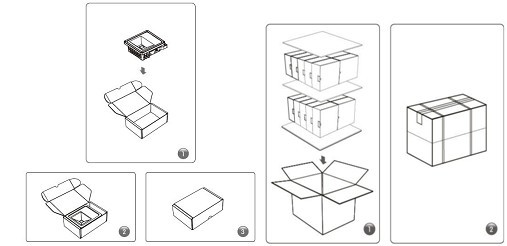

Package:
Applications:
Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotels, meeting rooms, offices , hospitals , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
|
|
