Brand Name : | Gidealed |
Certification : | CE,Rohs etc |
Model Number : | GD-6CH-DMX512 |
Price : | US$5-100/pcs |
Delivery Time : | within 7days upon all is confirmed |
Payment Terms : | TT,WEST UNION or LC |
Supply Ability : | 100,000 per 1 month |
Products Performance:
Input Power: DC5V~DC24V
Maximum load current: 6A/CH×3
Maximum power load: 90W (5V) 216W (12V) 432W (24V)
Output gray level: 256
Input Signal: DMX512/1990
Output signal: 3 channels Constant PWM
Output DMX : 3 channels
DMX512 socket standard RJ45; Ethernet port and standard XLR-3 caron plug
Size: L155*W88*H32mm
Package Measurement:160*90*50mm

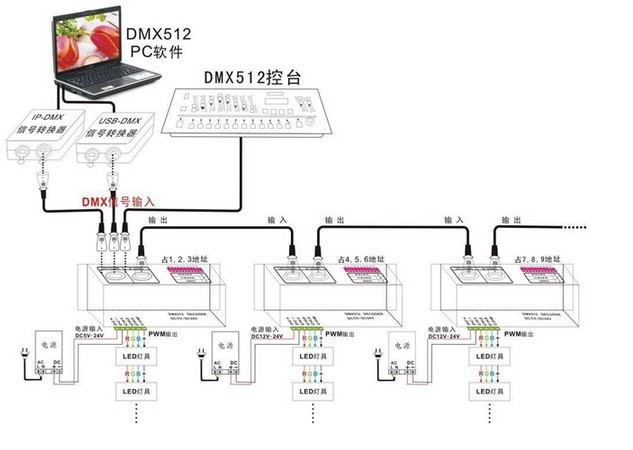

Schematic for System Connection:
![]() |
